RTR
Long Arm Lift Kit
2.2" Dekk
Høy & Lavserie
Portalaksler
New Clipless Body Mounting

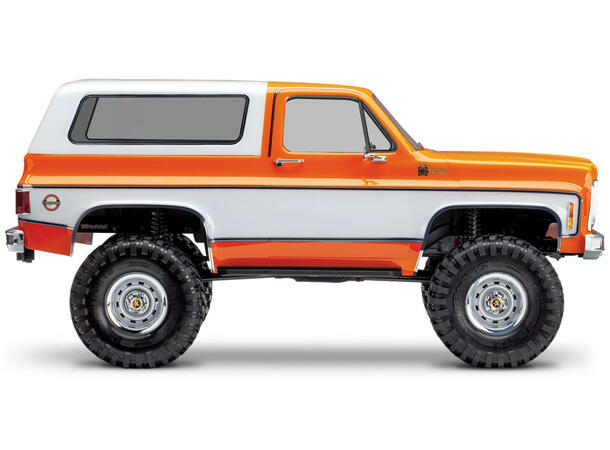

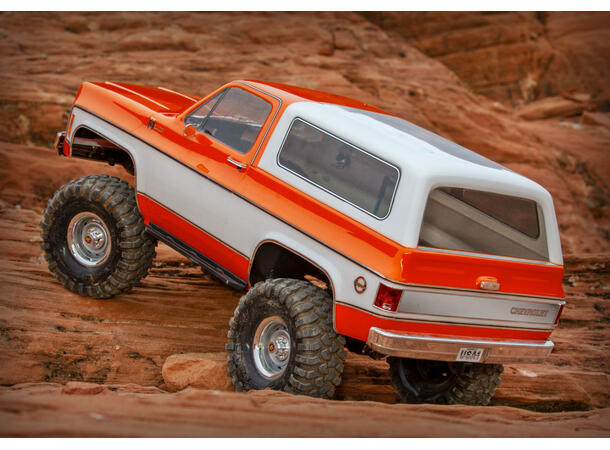

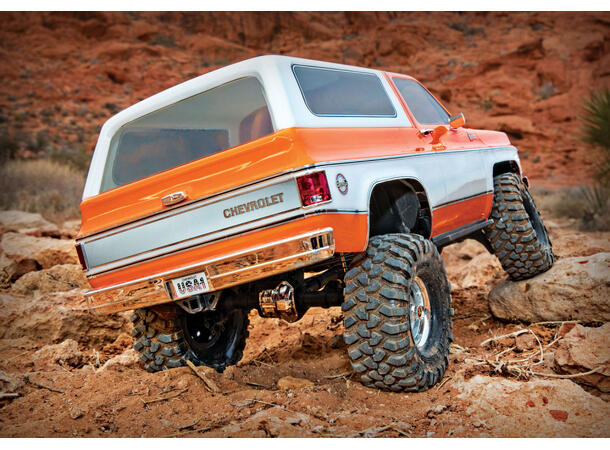

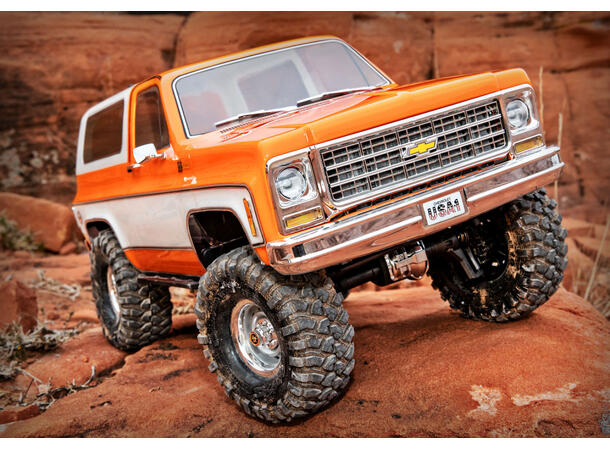

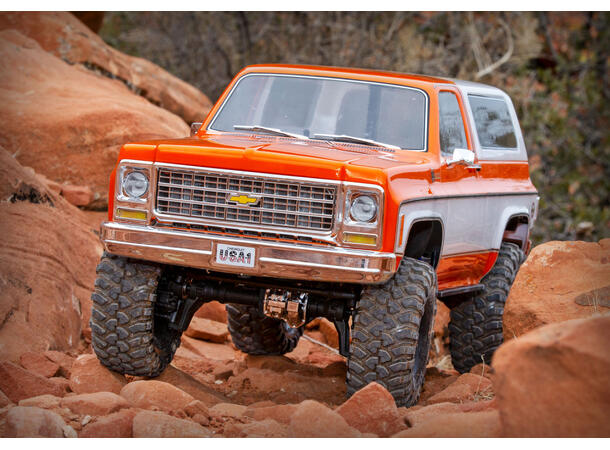

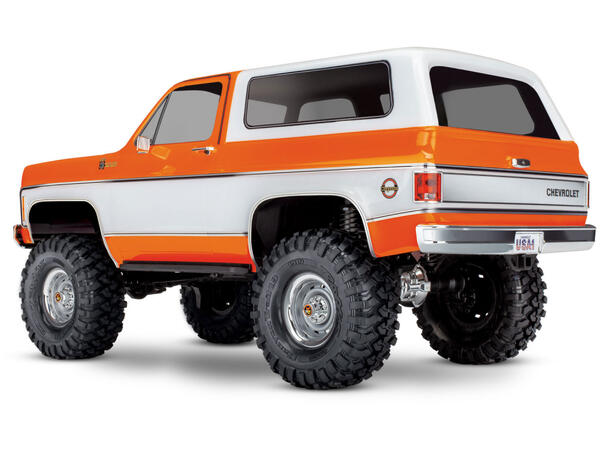

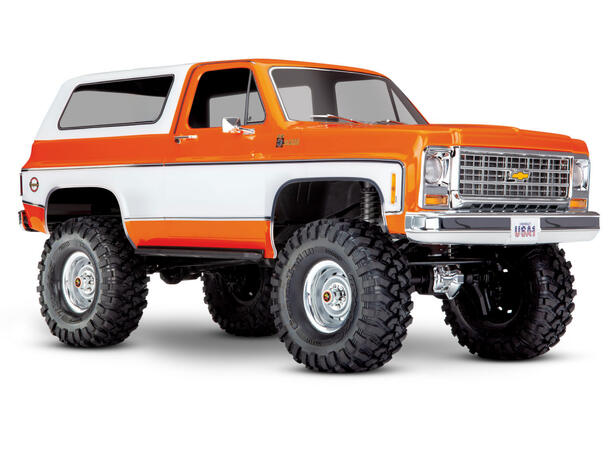

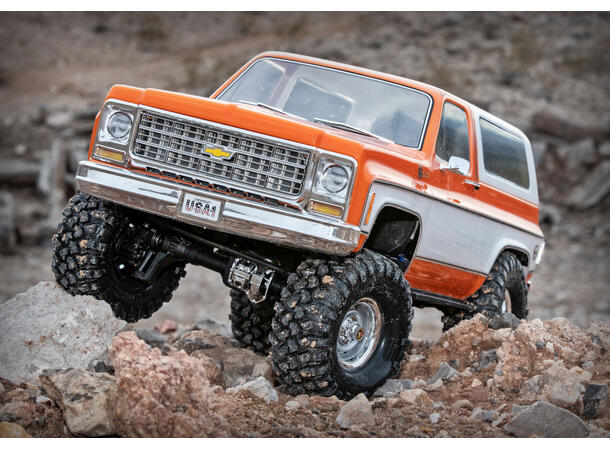

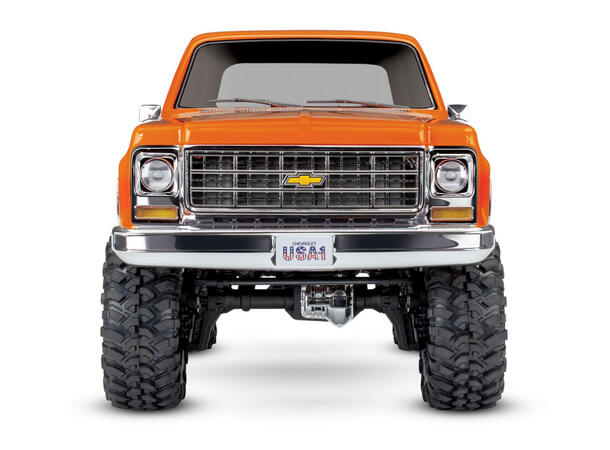

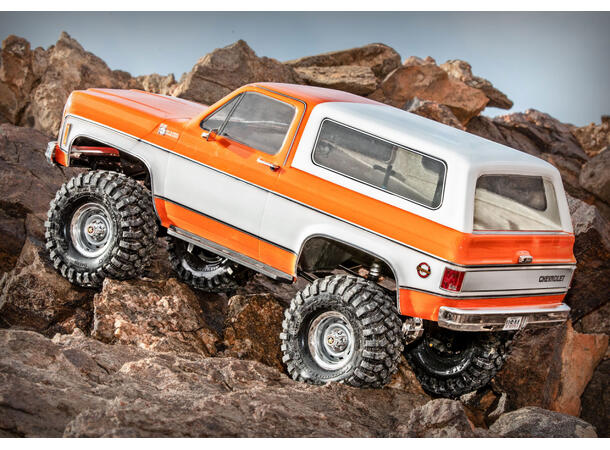

New to TRX-4 79' Chevrolet K5 Blazer, clipless body mounting combines clean flowing lines with secure latching convenience. TRX-4 K5 Blazer’s hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.
Specs:
- Length: 524 mm
- Width: 249 mm
- Ground Clearance: 80 mm
- Weight: 2.84 kg
- Height (overall): 255 mm
- Wheelbase: 312 mm
- Approach Angle: 59°
- Departure Angle: 47°
- Breakover Angle: 59°
- Shock Length: 90 mm
- Wheels: 1.9" x 1.02" (49 x 26 mm)
- Tires: 118 x 48 mm
- Hex Size: 12 mm
- Speed Control: XL-5™ HV
- Motor (electric): 21T reverse rotation
- Transmission: 2-speed high/low, remote shifting
- Gear Pitch: 32 pitch
- Differential Type: 4 gear, remote locking

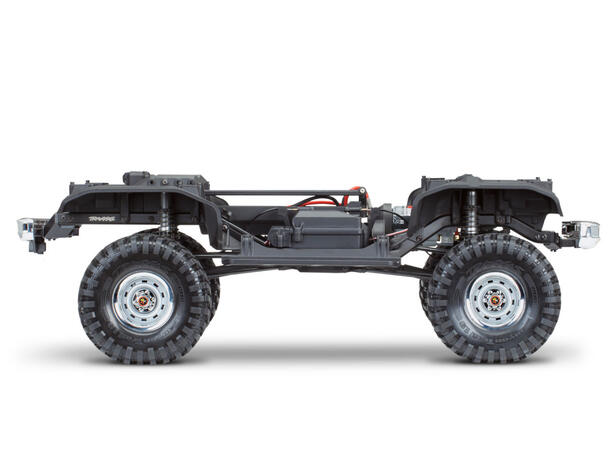

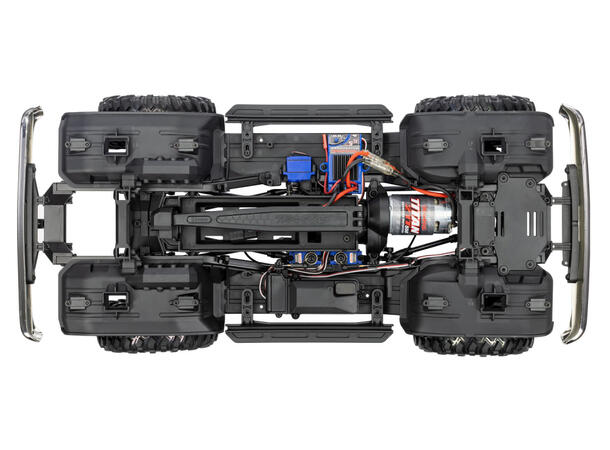

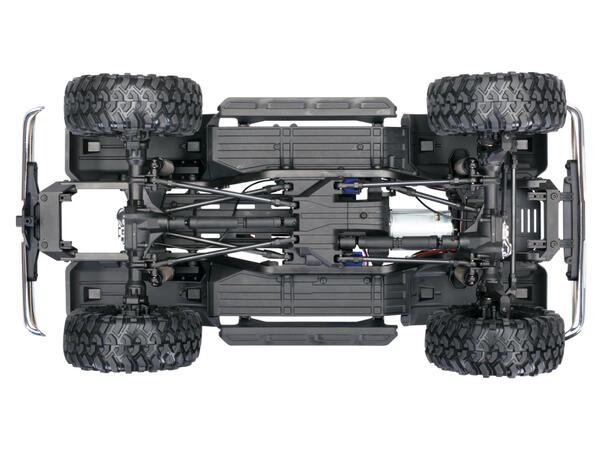

- Chassis Structure / Material: Steel ladder frame with Nylon composite crossmembers
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft driven 4WD
- Steering: Chassis mounted servo
- Servo: 2075X metal gear
- Transmitter: TQi™ 2.4 GHz 4-channel transmitter
- Receiver: 6533
- Skill Level: 1
- Battery Tray: L159 x W47 x H23/26 mm
What’s In The Box:
- TRX-4, Ready-To-Race® clipless model
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQi 2.4 GHz radio system with cruise control
- High quality maintenance tools
What You’ll Need:
- Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
- Charger: Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
Spesifikasjoner
Lengde | 563mm |
Bredde | 270mm |
Høyde | 277mm |
Bakkeklaring | 99mm |
Akselavstand | 336mm |
Hex | 12mm |
Hjul | 2,2" |
Batteriboks | L 158,75 x B 47 x H 23/26mm |
Nødvendig tilbehør
Batteri (7,2 - 8,4V NiMh eller 2-3s LiPo)Lader4 AA batterier til radioOBS!Når det kommer til batterivalg for Traxxas biler er det noen ting man må passe på.Originale Traxxas LiPo-batterier med iD kontakt vil kun passe i originale Traxxas iD ladere (viktig å skille mellom NiMh og LiPo ladere).Batterier fra andre produsenter vil ikke passe i originale Traxxas iD ladere, da må man f.eks. bruke en SkyRC lader med Traxxas HC ladekabel (viktig å skille mellom NiMh og LiPo ladere).Ved bruk av LiPo batterier må også bilen "LiPo cut-off" aktiveres.XL5 HVXL5 HV regulator gir deg flere kjøreprofiler å velge mellom, alt etter hvilket behov du har eller hvordan terreng du kjører i.
Sport | 100% fremover, 100% brems, 100% revers |
Race | 100% fremover, 100% brems, ikke revers |
Trening | 50% fremover, 100%brems, 50%revers |
Trail | 100% fremover, 100%brems, 100% revers "trail-tuned" bremse i nøytral |
Crawl | 100%fremover, 100% revers, 100% brems i nøytral |
