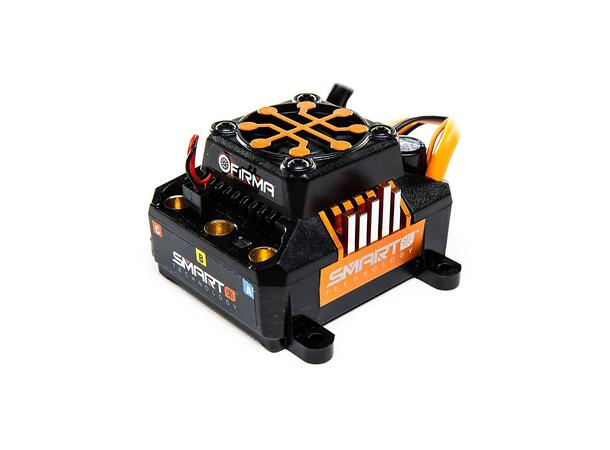

Spektrum Firma Smart ESC 3-8s

Smart børsteløs regulator fra Spektrum med Smart-teknologi og rå styrke. Leverer hele 160A opp til 8s, peak strømtrekk er på vanvittige 1050A. Regulatoren har to batterikontakter, begge IC5, som også er kompatibel med EC5. Til bruk på landgående kjøretøy.


Spesifikasjoner:

Bruksområde Bakke
Dimensjoner 70x77x44mm (LxBxH)
Vekt 280g

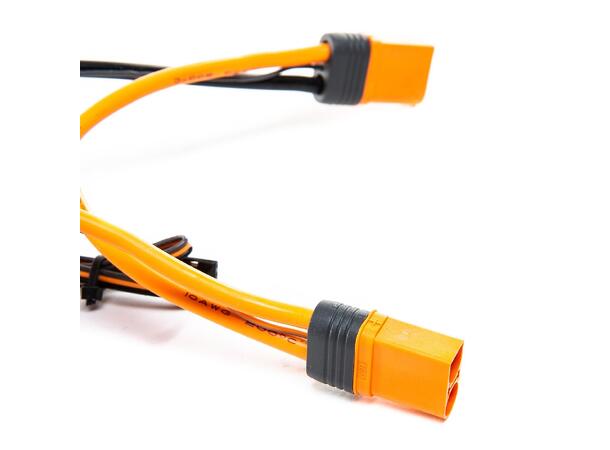

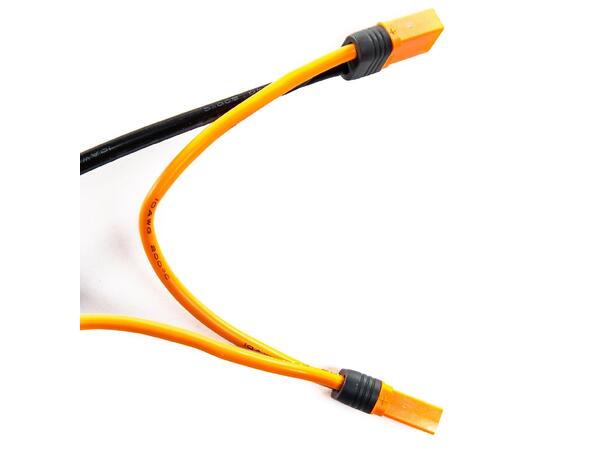

Batterikontakt 2 x IC5
Motorkontakt 6.5mm bullet
Kontinuerlig strømtrekk 160A
Maks strømtrekk 1050A
Innspenning 3-8s LiPo
Vannbestandig Ja
BEC-spenning 6/8.4V
BEC-strømtrekk 5A
Revers og brems Ja



Product Features

* Smart all-in-one telemetry
* Fast, powerful 32-bit ARM M4 processor
* Waterproof
* Multiple options for easy programming:
* Button programming
* Smart ESC Programming Box
* SmartLink USB Updating and Programmer application
* Multi-point protection:
* Over-current protection
* Automatic LiPo low-voltage cutoff
* Thermal protection
* Failsafe protection
* Developed and designed by Spektrum engineers, in partnership with the industrys leading ESC manufacturer
* Compact for easy installation in most applications
* Ready to install - no soldering required
* Rugged plastic case with mounting tabs
* Aluminum heat sink for high efficiency

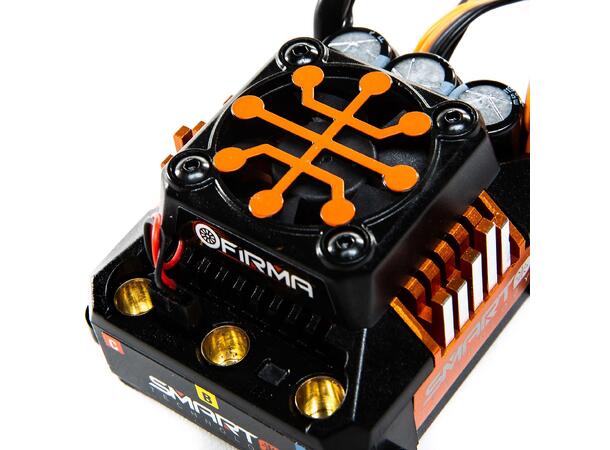

* Cooling fan
* Adjustable high-power BEC
* Firmware updatable through the Smart ESC Programming Box
* High heat-resistant IC-connectors, backwards compatible with EC-connectors
* Limited 1-year warranty

Product Overview
Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine plug-and-play" simplicity with the ability to communicate with other Smart electronics - together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, youll be better connected to your vehicle than ever before - without installing extra components that all work independently of each other. You wont need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. Youre able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Whats in the Box?

* (1) Spektrum Firma Smart ESC
* (1) Spektrum Smart sticker sheet
* (1) Product Manual"
