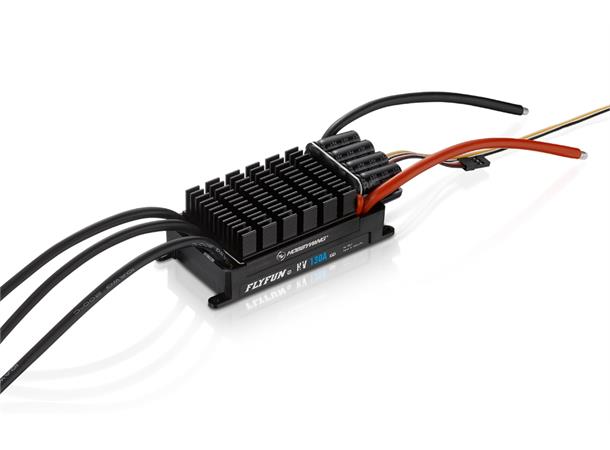

Hobbywing 130A FlyFun V5 HV OPTO

Hobbywing FlyFun 130A HV ESC for modeller med 6-14S LiPo. Leveres uten kontakter. Kan programmeres med radio eller LED programmerings boks.

Obs. Produktet avviker litt fra manualen, kabelen med 3 ledninger er KUN til programmering, kabelen med 2 ledninger skal i throttlekanal på mottaker.

Størrelse 110 x 50.3 x 33.2mm
Vekt 221.5g



Product Name
* FLYFUN 130A HV OPTO V5
Product Number
* 30201500
Type

Brushed/Brushless BL
High Voltage/Regular HV

Specifications

Cont./Peak Current 130A/160A
Input 6-14S LiPo
BEC Output No

Wires & Connectors

Input Wires Red-10AWG-150mm*1 / Black-10AWG-150mm*1
Output Wires Black-10AWG-150mm*3
Input Connectors No
Output Connecotors No

ESC Programing via

Transmitter Supported
LED Program Card Not Supported
LED Program Box Supported
LCD Program Box Not Supported
WiFi Module Not Supported
Program Port Separate Program Wire

Firmware

Firmware Upgrade Not Supported

Size & Weight

Size 110x50.3x33.2mm
Weight 221.5g

(Note: All the wire length above is the original length not the length you see from the outside.)
