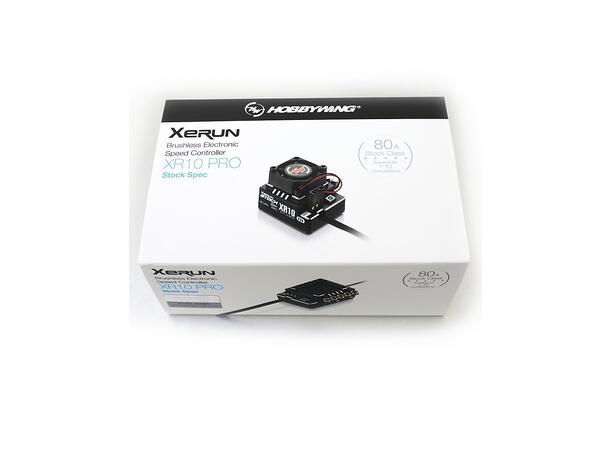

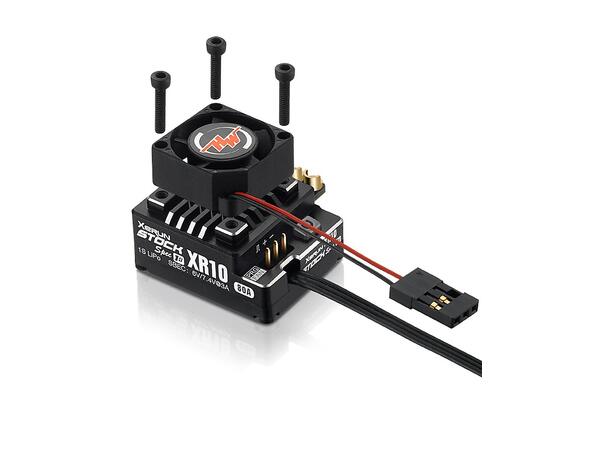

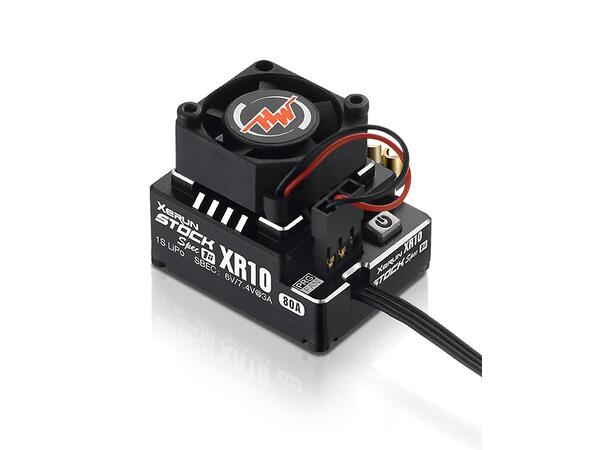

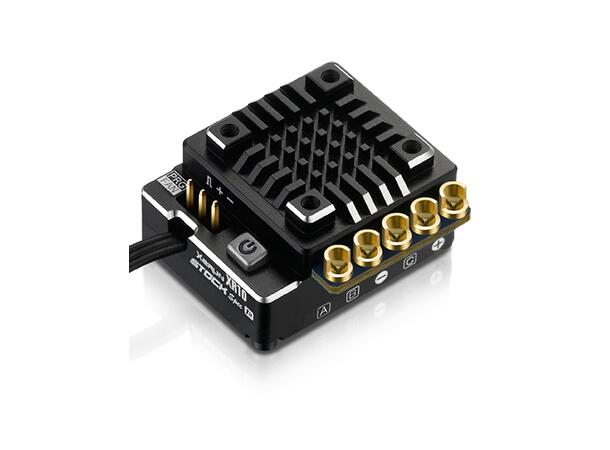

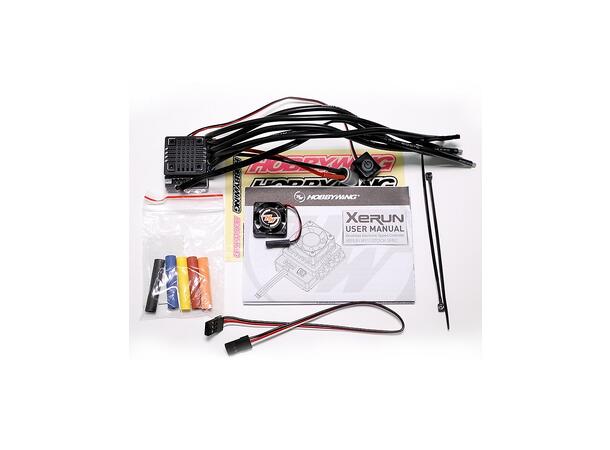

Hobbywing XeRun XR10 Pro Stock ESC

Ufattelig liten og lett 80A børsteløs regulator fra Hobbywing, kun 23,5g (uten ledninger og vifte). Den er kompatibel med både sensor og sensorløse motorer. Beregnet for bruk med 1s LiPo eller 3,6-4,8V NiMh. Leveres med ledinger men uten kontakter.



Størrelse 31,6 x 25,8 x 16,2mm
Vekt 2,5g uten ledninger og vifte



Specification

Current Continuous: 80A, Burst: 380A
Battery 1S LiPo, 3-4celler NiMH
Built-in BEC 6V / 7.4V Adjustable, Continuous Current of 3A (Switch-mode)
Motor Supported Sensored and sensorless brushless motors
Suitable Motor 3650 Motors T >= 10.5T
Application STOCK class of 1/12 - /1/10
Cooling Fan 5V - 7.4V (20x20x8mm)
Wires 14AWG-200mm
Size 31.6 x 25.8 x 16.2mm
Weight** 23,5g

** Weight is w/o wires, cooling fan

* Zero timing firmware for ROAR SPORTMAN races and other fair races.
* World`s Smallest footprint & Lightweight ESC ever. 23.5g"
* Programming/Upgrading/ Data Reading Wirelessly: Integrated Data logger can record the maximum temperature of ESC and motor as well as the maximum RPM.
* Built-in boost BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V for usage with high voltage servos.
* Separate PRG/FAN port is able to power an external fan for maximize cooling performance or connect a LCD program box or WiFi module to the ESC.
* With HOBBYWING WIFI express module, users are able to program parameters, upgrade firmware and check relevant data during the event using either the iphone or Android devices.
* New brakes and throttle functions: 100 levels of brag brake, 50 levels of initial brake force, 9 levels of maximum brake force, 20 levels of brake rate, and 30 levels of throttle rate. Adjustable brake mode, PWM and brake frequencies and for different competitions and control feel.
* Adjustable Turbo Timing & Boost Timing for different applications.
* Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail safe (throttle signal loss protection).
* Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real time.
Note: Wifi Express programming module, Multifunction LCD Program Box - sold separately"
